Speedy 300
Speedy 300 combines the reliability of InPack technology with fast engraving speeds, the Speedy 300 delivers exceptional performance within its compact design. Thousands of customers place their trust in the dependability of the Speedy 300.
Why choose Speedy 300?
- Seamless connectivity with Ruby®: Trotec's laser software enables cloud-based job management, remote access, and seamless integration for ultimate productivity.
- Proven reliability supported by InPack Technology™, protecting moving parts from dust and ensuring long‑term performance.
- Strong engraving productivity with processing speeds up to 3.55 m/s (140 ips) in a compact mid‑size working area
- Trusted by thousands of customers for consistent performance and dependable operation in daily production
Speedy 300 CO2 & flexx
![https://www.troteclaser.com/static/images/Laser_Machines/Speedy_Series/Speedy-300/TRO_Speedy_300_vdp_04_top.jpg](/static_processed/f38153cb07adfaa8b0377f539ad52dc7/tro_speedy_300_vdp_04_top.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Speedy_Series/Speedy-300/TRO_Speedy_300_vdp_04_top.jpg","edits":{"resize":{"width":615,"height":350,"fit":"inside"}},"outputFormat":{"format":"webp"}})
Specification | Details |
|---|---|
Laser source | CO₂ laser |
Working area | 726 x 432 mm | 29 x 17 in |
Overall dimensions (W × D × H) | 1130 × 943 × 1054 mm | 45 × 37 × 42 in |
![https://www.troteclaser.com/static/images/Laser_Machines/Speedy_Series/Speedy-300/TRO_Speedy_300FLEXX_vdp_04_top.jpg](/static_processed/2e9ed7ddf8a20f79d918d62e845b7328/tro_speedy_300flexx_vdp_04_top.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Speedy_Series/Speedy-300/TRO_Speedy_300FLEXX_vdp_04_top.jpg","edits":{"resize":{"width":615,"height":350,"fit":"inside"}},"outputFormat":{"format":"webp"}})
Specification | Details |
|---|---|
Laser source | CO₂ laser and Fiber laser |
Working area | 726 x 432 mm | 29 x 17 in |
Overall dimensions (W × D × H) | 1130 × 943 × 1054 mm | 45 × 37 × 42 in |
Advantages of the Speedy 300
Connected solution.
Durability meets quality
Endless possibilities
Efficient laser software.
Speedy 300 features
Speedy 300 options and accessories
Material compatibility with the Speedy 300
Organic materials
Note: With the Speedy 300 flexx, you can process all materials suitable for CO₂ and fiber lasers—thanks to both laser sources built into a single machine
Organic materials | Engraving/marking CO₂ | Cutting CO₂ | Engraving/marking Fiber | Cutting Fiber |
✓ | ✓ | - | - | |
Mirror | - | - | ✓ | - |
✓ | - | - | - | |
✓ | ✓ | - | - | |
✓ | ✓ | - | - | |
Food | ✓ | ✓ | - | - |
✓ | ✓ | - | - | |
✓ | ✓ | ✓ | ✓ | |
✓ | - | - | - | |
✓ | - | - | - |
Plastic
Note: With the Speedy 300 flexx, you can process all materials suitable for CO₂ and fiber lasers—thanks to both laser sources built into a single machine
Plastic | Engraving/Marking CO₂ | Cutting CO₂ | Engraving/Marking Fiber | Cutting Fiber |
Acrylic/PMMA, i.e. TroGlass, transparent | ✓ | ✓ | - | - |
Acrylic/PMMA, i.e. TroGlass, colored | ✓ | ✓ | ✓ | - |
Acrylonitrile butadiene styrene (ABS) | ✓ | ✓ | ✓ | - |
✓ | ✓ | - | - | |
Polyamide (PA) | ✓ | ✓ | ✓ | - |
Polybutylene terephthalate (PBT) | ✓ | ✓ | ✓ | - |
Polycarbonate (PC), transparent | - | ✓ | - | - |
Polycarbonate (PC), colored | ✓ | - | ✓ | - |
Polyethylene (PE) | ✓ | ✓ | ✓ | - |
Polyester (PES) | ✓ | ✓ | ✓ | - |
Polyethylene terephthalate (PET), transparent | ✓ | ✓ | - | - |
Polyethylene terephthalate (PET), colored | ✓ | ✓ | ✓ | - |
Polyimide (PI) | ✓ | ✓ | ✓ | - |
Polypropylene (PP) | ✓ | ✓ | ✓ | - |
Polyphenylene sulfide (PPS) | ✓ | ✓ | ✓ | - |
Polystyrene (PS), transparent | ✓ | ✓ | - | - |
Polystyrene (PS), colored | ✓ | ✓ | ✓ | - |
Polyurethane (PUR) | ✓ | ✓ | ✓ | - |
Foam (PVC free) | ✓ | ✓ | ✓ | - |
TroLase | ✓ | ✓ | ✓ | - |
Metal
Note: With the Speedy 300 flexx, you can process all materials suitable for CO₂ and fiber lasers—thanks to both laser sources built into a single machine
Metals | Engraving/Marking CO₂ | Cutting CO₂ | Engraving/Marking Fiber | Cutting Fiber |
- | - | - | - | |
✓ | - | ✓ | - | |
Black oxide finished surfaces | - | - | ✓ | - |
Chromium | - | - | ✓ | - |
- | - | ✓ | - | |
- | - | ✓ | - | |
Brass | - | - | ✓ | - |
Copper | - | - | ✓ | - |
Titanium | - | - | ✓ | - |
Paladium plated surfaces | - | - | ✓ | - |
Metal, painted, e.g. DuraBlack | ✓ | - | - | - |
Technical data of Speedy 300
| Speedy 300 CO2 | Speedy 300 flexx | |
|---|---|---|
| Working area (W x D) | 726 x 432 mm | 29 x 17 in | 726 x 432 mm | 29 x 17 in |
| Max. height of workpiece | 200 mm | 7.8 in | 200 mm | 7.8 in |
| Loading area (W x D) | 795 x 440 mm | 31 x 17 in | 795 x 440 mm | 31 x 17 in |
| Overall dimensions (W x D x H) | 1130 x 943 x 1054 mm | 45 x 37 x 42 in | 1130 x 943 x 1054 mm | 45 x 37 x 42 in |
| Max. processing speed | 3.55 m/s | 140 ips | 3.55 m/s | 140 ips |
| Max. acceleration | 50 m/s² | 1969 ips² | 50 m/s² | 1969 ips² |
| Technology motion system | Brushless DC servo motors | Brushless DC servo motors |
| Laser power CO2 | 50 - 120 W | 80 - 120 W |
| Laser power fiber | - | 30 W |
| Laser class | 2 | 2 |
| Weight | Approx. 150 kg / 330 lbs | Approx. 215 kg / 474 lbs |
| Power consumption | ~ AC 110-230V 50/60Hz, 0.94 kW - 1.8 kW | 1 ~ AC 110-230V 50/60Hz, max. 1.4 kW 1 ~ AC 230V 50/60Hz, max. 1.8 kW (100 - 120 W) |
![Lineup of Trotec Speedy series CO₂ laser engraving machines in various sizes against concrete wall](/static_processed/5b1d582a996effdf9e1ed5d1bd1f0c49/lineup-of-trotec-speedy-series-co-laser-engraving-machines-in-various-sizes-against-concrete-wall.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Speedy_Series/speedy-series-with-background-header.jpg","edits":{"extract":{"top":1069,"left":1479,"width":2397,"height":939},"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})

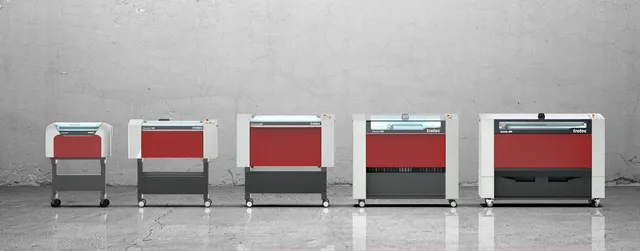

Discover our Speedy laser engraving and laser cutting systems
Our Speedy laser engravers combine maximum productivity with outstanding precision, enabling high‑quality engraving and cutting on a wide range of materials. Speedy systems deliver reliable performance whether you’re creating detailed single pieces or managing larger production runs.
