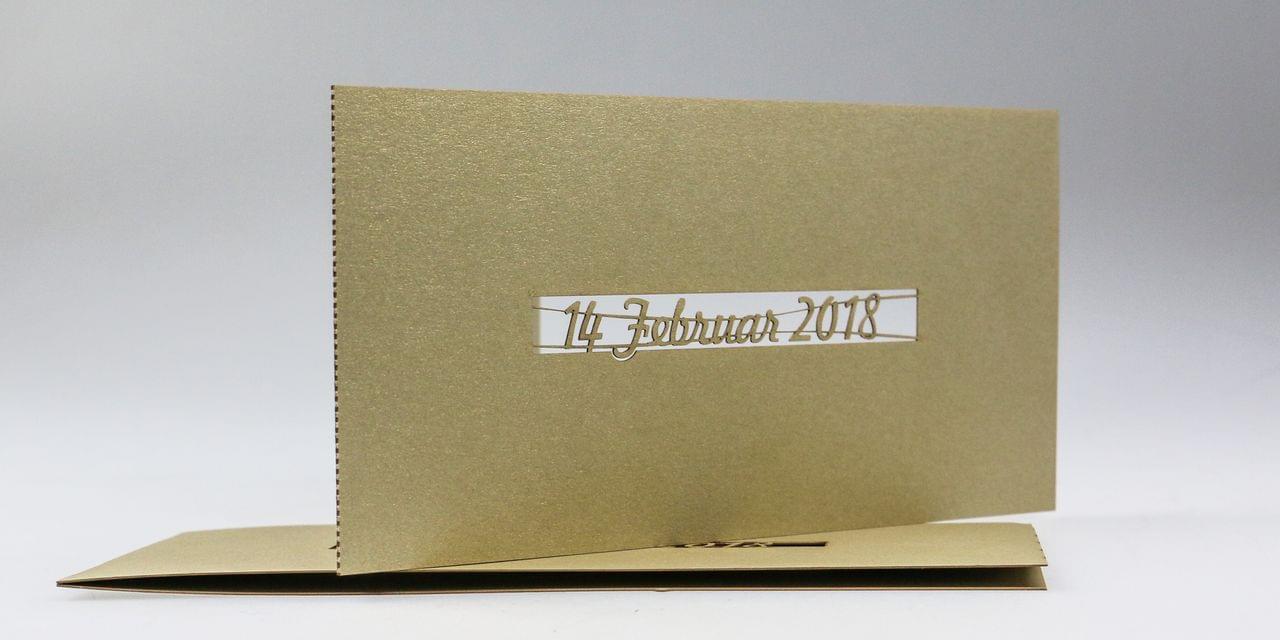

LaserPaper Valentine's card

Show that special someone just how much you love them by creating a beautiful Valentine's Day card using Trotec's LaserPaper.

Preparation

You Will Need

1 sheet of Trotec LaserPaper (any colour you desire)

Machine used

Speedy 360, 80 Watt
1.5" lens
Vacuum table / honeycomb cutting table

Feel free to use any machine from the Speedy series to create this beautiful card.

Tip

We recommend using the 1.5" lens if you'd like to create intricate cutting designs, such as the ones in our template.

Valentines Card

ZIP

Download now

ZIP

Download now

Step by step

cartão-de-dia-dos-namorados-de-configurações-de-impressão

Step 1

Step 1: Import the Design

Try creating your own design, or feel free to import the template we've provided. Then, send the job to your laser machine using the driver settings below:

Print Settings:

Process Mode	Resolution	Cut Line
Standard	500 dpi	None

Halftone	Others
Colour

Info:

You'll find there are lots of tiny circles creating the shape of a heart. This is so that you can 'pop' the heart out nice and easily, and re-purpose it for another project.

Step 2

Step 2: Engraving the Paper

Enter the material parameter settings. We decided to use several parameters, which have been optimised for a large range of requirements (fast cutting, slow cutting, light and deep engraving and even scratching). Please note, these parameters can vary depending on the laser machine you are using and its available power.

LASER PARAMETERS:

Colour	Process	Power (%)	Speed (%)	ppi/Hz
Black	Engrave CO₂	17	20	500
Red	Engrave CO₂	25	20	500
Blue	Cut CO₂	12	1	1000
Cyan	Cut CO₂	5	1	1000
Green	Cut CO₂	24	2	1000

Passes	Air Assist	Z-OFfset	Advanced
1	On	+3mm	High Quality
1	On	-	High Quality
1	On	-	-
1	On	+4mm	-
1	On	-	-

Info:

We recommend covering the rest of the engraving area with something like scrap pieces of paper to achieve the best possible vacuum. This will, effectively, hold your paper in place.

Step 3

Step 3: Cleaning

You can clean up the dust with a damp cloth if you need to. Please ensure that the cloth is not dripping wet to avoid damaging the paper.

Inspiration

Try combining different colours from the Trotec LaserPaper range to create lots of different cards.
Be original and try using different materials to really wow your customers.
