Marking Laser
U Series
< 190 x 190 mm
Work area
Fiber
Laser type
20 watts
Laser power

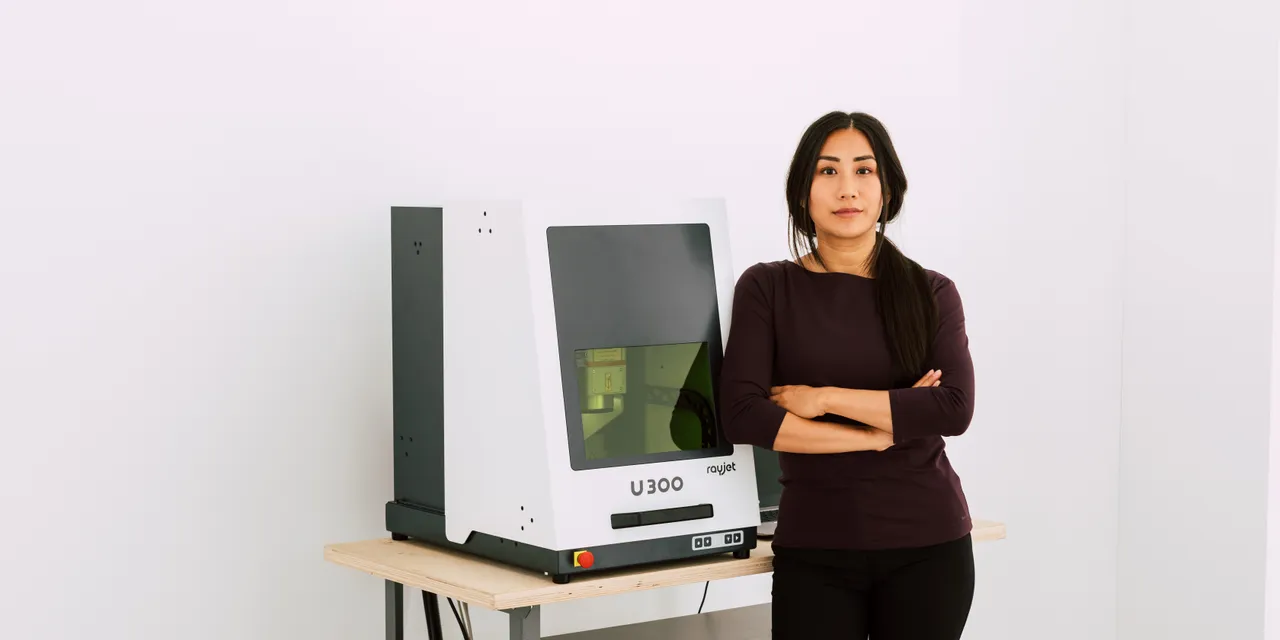

Why you need a U300 marking laser.
With the U series marking lasers you can mark or engrave individual pieces as well as small series. Data plates with individual serial numbers, codes and logos can be implemented quickly. Metal advertising materials can also be customized easily and without laser marking sprays. Engravers, contract manufacturers and machine builders can easily mark components, data plates or tools - even in recesses.
Achieve the best engraving quality thanks to high-quality lenses.
High-quality lenses and an excellent laser spot guarantee a perfect application result for your marking. Even the smallest details can be precisely marked. Functions such as polishing and deep engraving ensure legibility even on demanding materials.
You save time with border marking.
The special highlight of the U300 marking laser is the preview of the area to be marked. The contours of the design are projected onto the component. For correct positioning, you can use the border marking function and, if necessary, correct it in the software with a click of the mouse or manually align the component to the projection.
You’re independent and flexible thanks to the Ethernet cable.
The integrated Ethernet interface allows the laser to be controlled with any Windows PC. So you’re no longer confined by the functionality of an industrial PC. Simply plug in and laser - you’ll be surprised how much time you save!
![](/static_processed/e13c93d5f34c84a898cdaaf75a5e9905/contact-ferdinand.jpg?{"image":"https://backend.troteclaser.com/static/images/contact/contact-ferdinand.jpg","edits":{"resize":{"width":194,"height":194,"fit":"cover"}}})
![](/static_processed/5294bd3fe70ab643c42b1c0439681839/marking-laser-u-dynamic-data.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/u-series/marking-laser-u-dynamic-data.jpg","edits":{"resize":{"width":640,"fit":"cover"}}})
Mark everything that needs to be marked.
Process data directly from CSV and use the dynamic mail merge function for your data plates. In this way, you can individualize separate parts automatically and with consistent data. You can do the programming and processing of all dynamic data directly in the laser software - without the help of third-party programs. Ideal for small and medium quantities.
| 10 | 50 - 50,000 |
| different connectors | pieces per hour |
|---|
![](/static_processed/89e7a8075305ece934a1be01a6a50337/marking-laser-u-high-speed-marking.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/u-series/marking-laser-u-high-speed-marking.jpg","edits":{"resize":{"width":640,"fit":"cover"}}})
Marked in seconds.
Mark your objects at high speed with our galvo laser machines.
For permanent labeling of metals and plastics with data matrix codes, serial numbers or individual labeling with the smallest of fonts.
| 6 m/s | 800 |
| marking speed | characters per second |
|---|
![](/static_processed/341b494ea19b7fb4fd319ccfbf654d13/marking-laser-u-dynamic-code-zoom-in.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/u-series/marking-laser-u-dynamic-code-zoom-in.jpg","edits":{"resize":{"width":640,"fit":"cover"}}})
Automatically generated in the software.
Select your code type and get started.
Identification made easy - with more than 100 integrated barcodes or data matrix codes in our software. Dynamic 1D and 2D codes are automatically generated in our software.
| >100 | 1+2D |
| integrated barcodes | automatic code generation |
|---|
![](/static_processed/5db0e41fb2eca9f6ca5acce6f39bcd1a/robust-marking-laser-u.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/u-series/robust-marking-laser-u.jpg","edits":{"resize":{"width":640,"fit":"cover"}}})
A sustainable investment.
Use the U300 marking laser for a lifetime.
Robust and durable: the fiber laser source as well as housing processing with the highest European quality standards.
| 10 | 9001 |
| years of protection | ISO standard |
|---|
![](/static_processed/d7fe78ce7b22a884026e7c87a8456666/marking-laser-u-bordermarking.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/u-series/marking-laser-u-bordermarking.jpg","edits":{"resize":{"width":640,"fit":"cover"}}})
Save time.
Project a preview onto the component and benefit from the marking position being correct from the start. Position in real time and, if necessary, correct with a click of the mouse. The border marking function makes this possible.
| 1:1 | 50% |
| transfer | faster positioning |
|---|
More features of the marking laser.
User-friendly focusing
Excellent legibility.
Efficient exhaust system
Sophisticated technology
Always productive
Independent and flexible thanks to Ethernet
Compactly integrated.
Flexible marking.
Integrated material parameters
Safe according to CE
Technical data of the U series.
| U300 02F F160 | U300 02F F254 | U50 02F F160 | U50 02F F254 | |
|---|---|---|---|---|
| Working area (W x D) | 120 x 120 mm | 190 x 190 mm | 120 x 120 mm | 190 x 190 mm |
| Max. height of workpiece | 171 mm | 22 mm | ||
| Loading area (W x D) | 350 x 400 mm | 350 x 400 mm | ||
| Overall dimensions (W x D x H) | 445 x 851 x 653 mm | 445 x 851 x 653 mm | 120 x 643 x 110 mm | 120 x 643 x 110 mm |
| Max. marking speed | 6 m/s | 9.5 m/s | 6 m/s | 9.5 m/s |
| Max. positioning speed | 12 m/s | 19 m/s | 12 m/s | 19 m/s |
| Weight | 56 kg | 56 kg | 8 kg | 8 kg |
| Max. loading | 25 kg | 25 kg | ||
| Weight laser rack | 20 kg | 20 kg | 20 kg | 20 kg |
| Z-axis | Software-controlled servo axis | Software-controlled servo axis |
Material compatibility with the U300 marking lasers.
Fiber
| Engrave | Cut | Mark | |
| Acrylics | - | - | - |
| Glass | - | - | - |
| Plastic sheets | - | - | - |
| Leather | - | - | ✔ |
| Metal* | ✔ | - | ✔ |
| Paper | - | - | ✔ |
| Plastics | - | - | ✔ |
| Stone | - | - | - |
| Textiles | - | - | ✔ |
| Wood | - | - | - |
*Cutting metal films up to 0.5 mm thickness possible. Individual tests recommended.
