Cornhole game

Cornhole, also referred to as Bean Bag Toss, is a game that originated in the Midwest and has increased in popularity across the US in bars, college campuses and homes. It goes well with tailgating, beer, BBQs and backyards.

Preparation

Required material
  • 2 - 61 x 122 cm sections of 1.3 cm plywood
  • 4 - 5 x 10 x 122 cm for the frame
  • 4 - 5 x 10 x 61 cm for the frame
  • 4 - 5 x 10 x 29 cm for the legs
  • 4 - Carriage Bolts
  • 4 - washers
  • 4 - wing nuts
  • Paint
  • High gloss varnish, both spray and brush on
Used Trotec Laser
  • for boards
    Speedy 500, 200 watts, 2.0 inch lens
  • for bags
    Speedy 300, 120 watts, 1.5 inch lens
Cornhole-Board-JC.zip

ZIP

Download now

PDF

Download now

Step by step

board in the laser
Step 1

Step 1: Laser Engraving and Cutting the Boards

The American Cornhole Association requires platforms be a 61 x 122 cm rectangle made from 1.5 cm plywood. The front of the platform stands 6.5 to 10 cm tall and the back of the platform sits 30 cm off the ground.

Using a large format laser cutter, here we used a Trotec SP500, set one of the pieces of plywood in the laser. We had to place ours sideways, since we wanted to both cut and engrave at the same time. You can also use a smaller laser with a pass through and cut the plywood down to size with a saw. Most home improvement stores will do this for a small fee.

Laser settings

Speedy 500, 200 watts, 2.0 inch lens
Engraving: Power: 70%, Speed: 100%, Frequency: 500ppi, Z offset: 0.5cm (for a nice dark engraving mark), Air Assist: ON
Cutting: Power: 100%, Speed: 0.50%, Frequency: 1000Hz, Air Assist: ON

board in the laser
Step 2

Step 2: Building the Box

Now to build the box. Use the 5 x 10 cm pieces to build two 61 cm x 122 cm rectangles using two screws on each corner.
Attach one sheet of plywood to each 5 x 10 cm frame, using drywall screws. I used four across the top and four across the bottom evenly spaced. Down each side I put a screw about every 30 cm. Counter-sink the screws slightly so that the bags will not snag.

cutting the board legs
Step 3

Step 3: Leg Assembly

Now it's time for the legs. Get the 5 x 10 x 29 cm for the four legs. Make a full 9 cm radius cut on one end of each leg. To make the cut, measure 4.5 cm down the length of the 5 x 10 and draw a line across it. Place a compass point centered on that line then draw the arc. Use a jigsaw to make the cut.

Turn the box upside down; lay a leg parallel, flush up against one of the top corners with the radius side in the corner. Clamp into place. From the inside of the box, make a mark in the center of the 5 x 10 vertically inside the radius. Drill a 1.3 cm hole through the side of the box and through the support leg.

Fasten the legs to the platform using pairs of carriage bolts + washers + wingnuts. The legs will rotate for nicer storage.

finished engraved board
Step 4

Step 4: Paint and Varnish

Now we want to paint the sides of the box and a little into the top of the board. Fill any holes or cracks with wood filler and let dry. Mask off a 2.5 cm area around the outside of the top of the box, and using high gloss paint, paint the sides of the box and the 2.5 cm strip around the top of the box with at least 2 coats of paint.

Once this is dry, coat the entire top and sides of the box with a high gloss varnish to protect the engraved area and make the bags “slide” but not too slippery. Since the dark laser mark made while engraving is prone to smearing, we first coated it with a few layers of spray polyacrylic before using the heavier, brush on version. 5 – 10 coats total should be enough. You want the grooves made by the engraving to feel smooth and not interrupt the sliding of the bags.

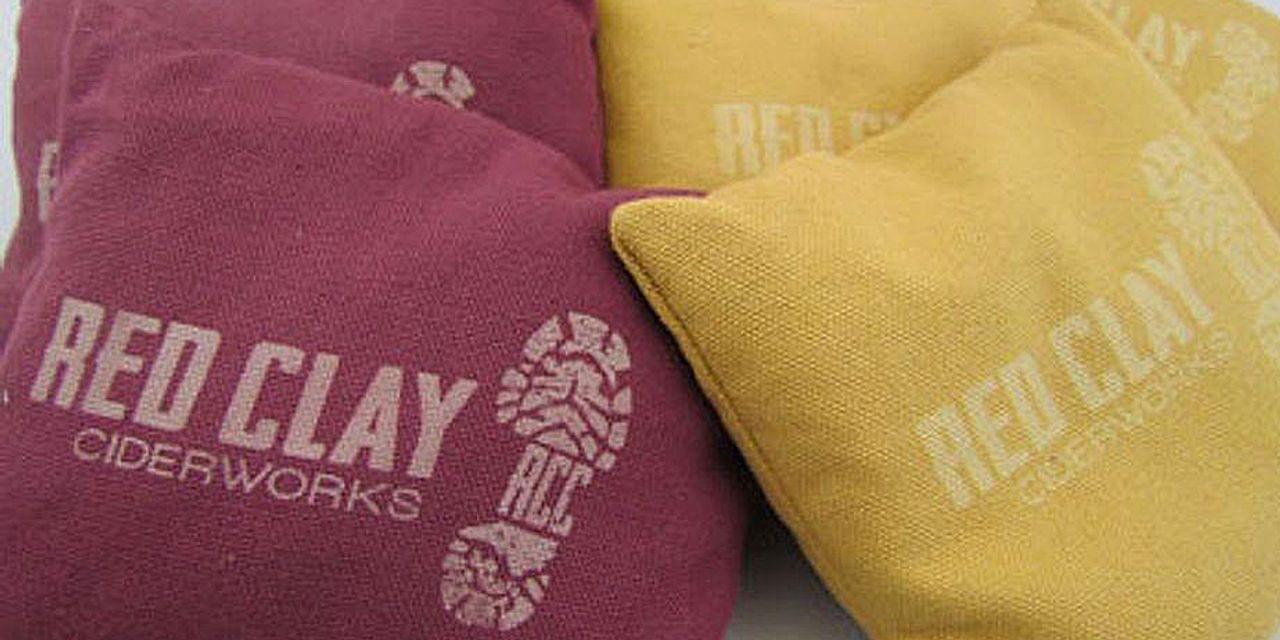

engraved corn filled bags
Step 5

Step 5: Bags

Cornhole bags are canvas bags measuring 15 cm x 15 cm and filled with one pound of feed corn. You can also fill them with plastic pellets to make them weather proof, but the corn lets off a small amount of dust when hitting the boards, which helps with getting the perfect slide when playing. Not being sewers, we ordered our bags from

laser engraving on wood and textile
Step 6

Step 6: Game on!

Now that you have all the parts of the set, it’s time to set it up and start playing!
