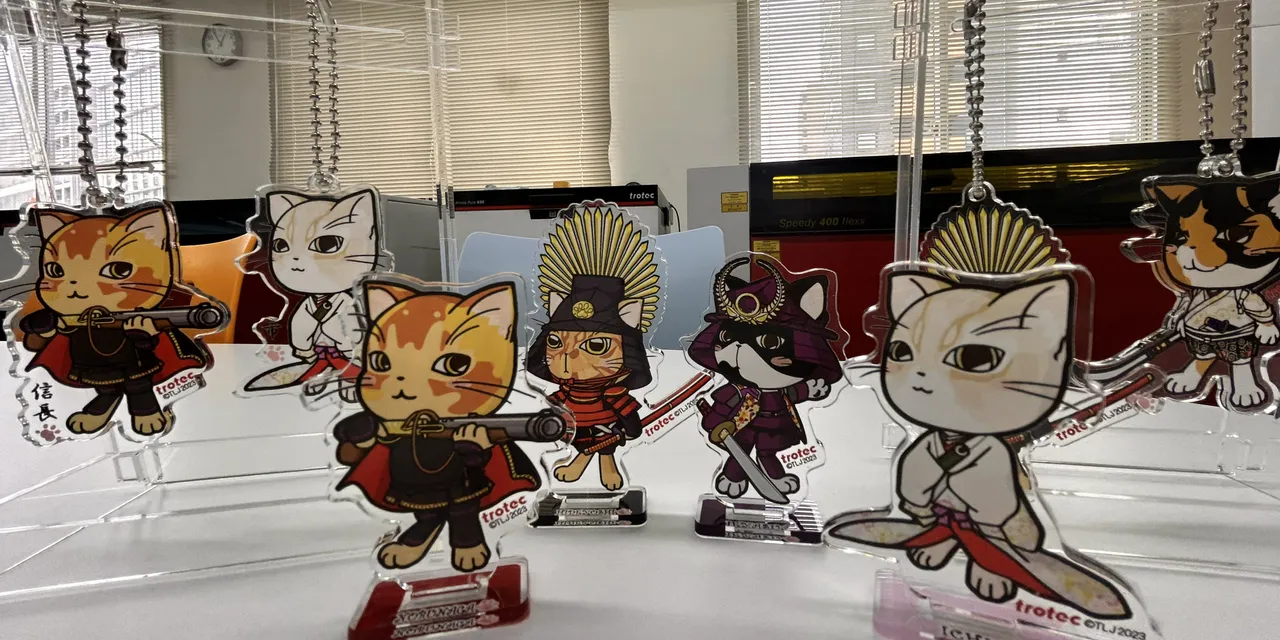

Nøglering i trykt akryl
Fremstil UV-trykte nøgleringe i akryl ved at kombinere laserskæring med Vision Print&Cut-kamerasystemet. Denne arbejdsgang giver dig mulighed for at opnå præcis konturskæring og levende trykte motiver, hvilket udvider dine muligheder inden for akrylprodukter.
Skær dine akryl-nøgleringe ud af UV-trykte plader ved hjælp af Speedy 360 og Vision Print & Cut-kameraet for perfekt registrering af registreringsmærker og rene kanter.
Her finder du skærefiler til akrylnøgleringene.
Forberedelse
Required material
- 1 sheet of 3 mm thick TroGlass acrylic
Machine used
- Speedy 360
- 80 watts
- 2.0" lens
- acrylic cutting grid table
Trin for trin
![](/static_processed/2b0934fc531f8fd284b5c22ecc2fe3b0/regmarks.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/laser-projects/Printed_Acrylic_keychain/Images/regmarks.jpg","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "regmarks.jpg")

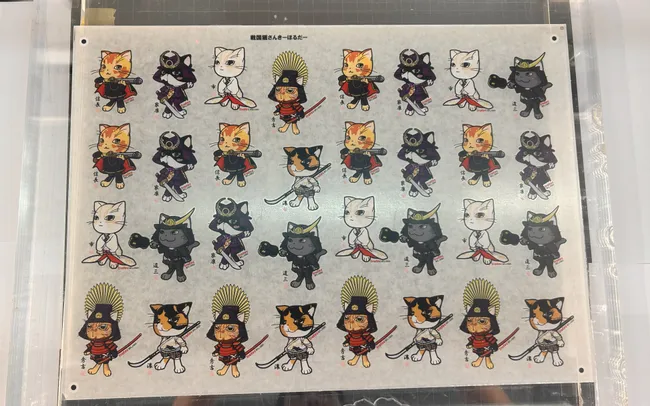

Design
Import our template and adapt it to your requirements.
Make sure that the design includes registration marks.
With "Create job" move the design to the "Prepare" screen.
![](/static_processed/895258016d0cfd08374ee7899a57a4d6/vision-print-and-cut.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/laser-projects/Printed_Acrylic_keychain/Images/Vision-print-and-cut.jpg","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "Vision-print-and-cut.jpg")

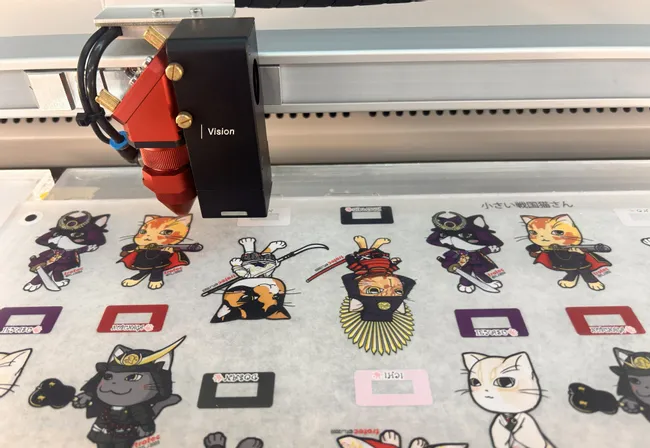

Laser process
Place the job to the desired position and adapt the settings.
Laser parameters differ depending on the machine and available laser power.
Please check the Trotec material database for the appropriate settings for your material.
Send the job to the "Queue" for Laser processing.
![](/static_processed/d00bed9a53108223894fe676d96565e2/keychain.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/laser-projects/Printed_Acrylic_keychain/Images/keychain.jpg","edits":{"resize":{"width":650,"fit":"cover"}},"outputFormat":{"format":"webp"}} "keychain.jpg")

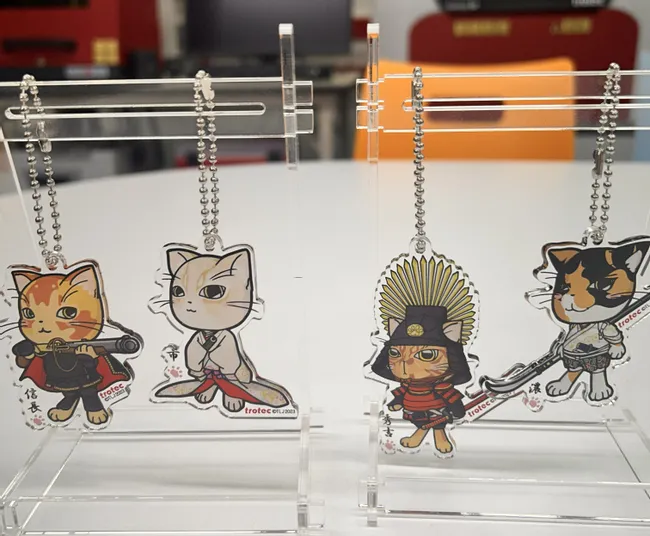

Finishing
If the acrylic is still covered with a protective foil, remove it before attaching the chain to the keychain.
![](/static_processed/b6cf8029027c0ecfd023c70b45614ad5/.jpg?{"image":"https://backend.troteclaser.com/static/images/knowledge/blog/08-2024-acrylic-keyholder-japan/vision-print-regmarks.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})

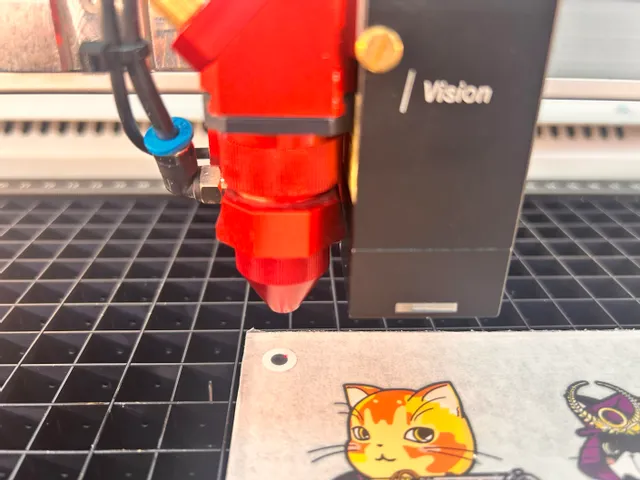

Vision Print&Cut; – Vigtigste funktioner
Præcis konturskæring: Et kompakt kamera aflæser de trykte registreringsmærker og korrigerer automatisk eventuelle fejl i justeringen for at sikre præcise snit.
Hurtig og nem positionering: Juster blot ét registreringsmærke; kameraet registrerer resten automatisk, når opgaven starter.
Mindre materialespild: Automatisk korrektion minimerer skærefelter og forhindrer unødvendigt materialetab.
Gravering uden at fjerne kameraet: Du kan lade kameraet sidde på, selv når du graverer eller udfører opgaver, der ikke kræver kameraet.
Kompatibelt med flere modeller: Fås til de fleste Speedy-modeller og kan tilføjes senere som en opgradering.
