E340 CO2 Laser Cutter
The E340 is focused on the essentials of CO₂ laser cutting — reliable results, a straightforward workflow, and a connected system that’s easy to operate and ready to grow with you.
Why choose E340?
- Dependable from day one – Proven core technologies and a robust build ensure stable cutting and engraving quality with minimal downtime.
- Straightforward workflow – Ruby® Essential brings design, job preparation, and machine control into one clear, intuitive environment.
- Clean results with less setup – OptiMotion™ automatically optimizes motion for smooth cuts and efficient production.
- Easy to run, easy to monitor – Centralized system control and smart electronics provide clear status information and automated checks.
- Scalable by design – Start with an attractive entry-level configuration and expand with training, service, and support when needed.
Advantages of the E340 – CO₂ laser cutting made simple
Reliable performance made simple
Streamlined workflow Ruby® Essential
Connected smart solution
Adjustable service and support packages
Included features of the E340
E340 options and accessories
Material compatability with the E340
Organic materials
Organic materials | Engraving/marking CO₂ | Cutting CO₂ |
✓ | ✓ | |
Mirror | - | - |
✓ | - | |
✓ | ✓ | |
✓ | ✓ | |
Food | ✓ | ✓ |
✓ | ✓ | |
✓ | ✓ | |
✓ | - | |
✓ | - |
Plastic
Plastic | Engraving/Marking CO₂ | Cutting CO₂ |
Acrylic/PMMA, i.e. TroGlass, transparent | ✓ | ✓ |
Acrylic/PMMA, i.e. TroGlass, colored | ✓ | ✓ |
Acrylonitrile butadiene styrene (ABS) | ✓ | ✓ |
✓ | ✓ | |
Polyamide (PA) | ✓ | ✓ |
Polybutylene terephthalate (PBT) | ✓ | ✓ |
Polycarbonate (PC), transparent | - | ✓ |
Polycarbonate (PC), colored | ✓ | - |
Polyethylene (PE) | ✓ | ✓ |
Polyester (PES) | ✓ | ✓ |
Polyethylene terephthalate (PET), transparent | ✓ | ✓ |
Polyethylene terephthalate (PET), colored | ✓ | ✓ |
Polyimide (PI) | ✓ | ✓ |
Polyoxymethylene (POM) -i.e. Delrin® | ✓ | ✓ |
Polypropylene (PP) | ✓ | ✓ |
Polyphenylene sulfide (PPS) | ✓ | ✓ |
Polystyrene (PS), transparent | ✓ | ✓ |
Polystyrene (PS), colored | ✓ | ✓ |
Polyurethane (PUR) | ✓ | ✓ |
Foam (PVC free) | ✓ | ✓ |
TroLase | ✓ | ✓ |
Metal
Metals | Engraving/Marking CO₂ | Cutting CO₂ |
- | - | |
✓ | - | |
Black oxide finished surfaces | - | - |
Chromium | - | - |
- | - | |
- | - | |
Brass | - | - |
Copper | - | - |
Titanium | - | - |
Paladium plated surfaces | - | - |
Metal, painted, e.g. DuraBlack | ✓ | - |
Technical data of E340
E340 RF | |
|---|---|
| Working area (W x D) | 875 x 580 mm| 34.4 x 22.8 in |
| Max. height of workpiece | 225 mm | 8,9 in |
| Loading area (W x D) | 991 x 691 mm | 39 x 27,2 in |
| Overall dimensions (W x D x H) | 1520 x 1205 x 1115 mm | 59.8 x 47.5 x 43.9 in |
| Max. processing speed | 1,2 m/s | 47,2 ips |
| Max. acceleration | 25 m/s² | 984.3 ips² |
| Technology motion system | Brushless stepper motor |
| Laser power CO2 | Sealed-off RF CO2 laser 60 W |
| Laser class | 2 |
| Weight | Approx. 275 kg | 606.3 lbs |
| Power consumption | 1 ~ AC 110-230 V, 50/60 Hz, 1000 W |
![Aufstellung von Trotec Laserschneidern und Lasergravierern der Speedy-Serie CO₂ vor dem Hintergrund einer Betonwand](/static_processed/b31dc283b9bb88040bfd24d5258e0b34/aufstellung-von-trotec-laserschneidern-und-lasergravierern-der-speedy-serie-co-vor-dem-hintergrund-einer-betonwand.jpg?{"image":"https://backend.troteclaser.com/static/images/Laser_Machines/Speedy_Series/Group-flatbed-02-Speedy-series-with-background.jpg","edits":{"resize":{"width":640,"fit":"cover"}},"outputFormat":{"format":"webp"}})

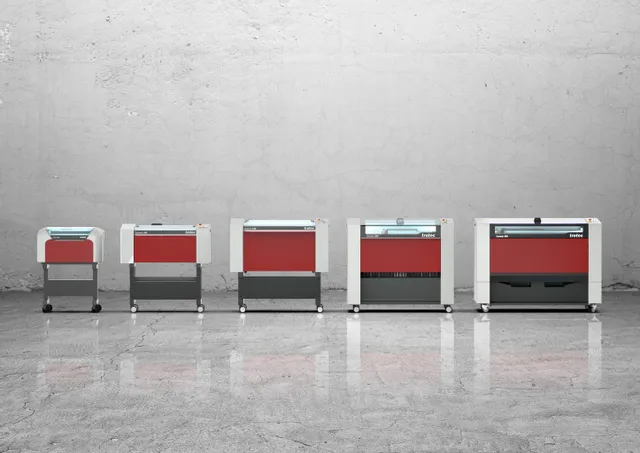

Are you looking for an industry-level laser machine? Check our Speedy series!
If your business requires even higher throughput and maximum productivity, explore our Speedy series. While the E340 stands for reliable, straightforward laser cutting and engraving, the Speedy line is engineered for demanding workflows with superior speed, advanced automation options and industry‑leading productivity. Compare both series to find the perfect fit for your long‑term growth.
