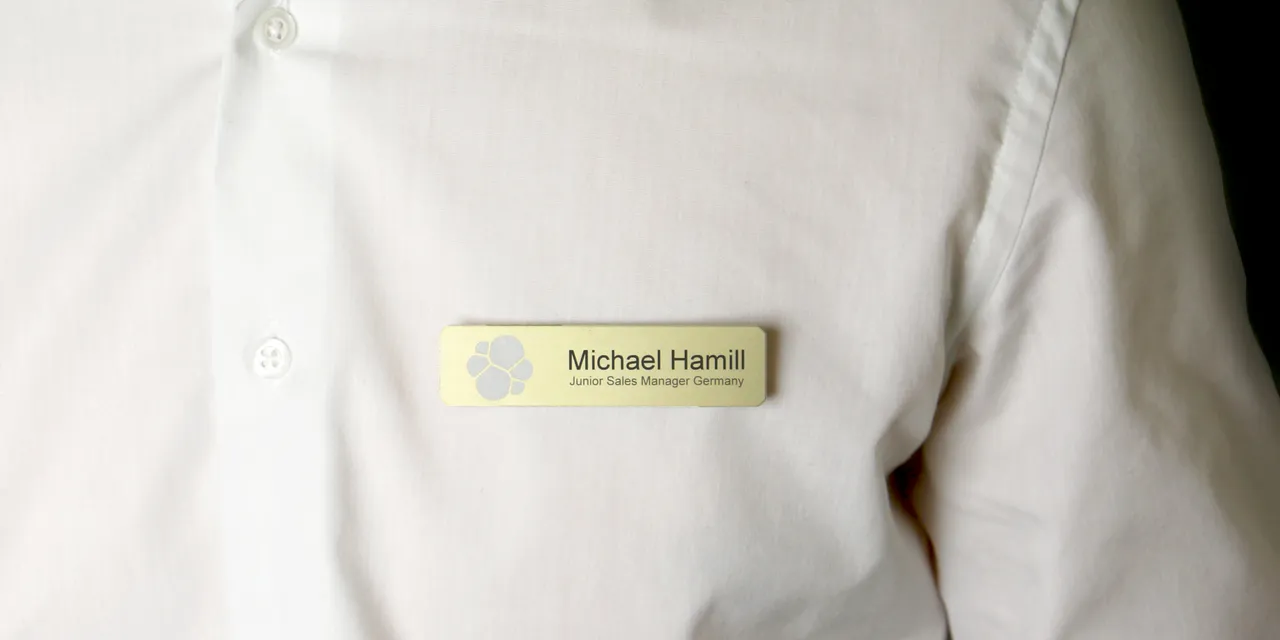

Label nama yang diukir dengan laser pada kemeja putih yang dibuat dengan mesin pengukiran laser Trotec

Black Marking Anodized Aluminum Nametag with MOPA

Learn how you can make black markings on anodized aluminum with a MOPA laser, using this name badge as inspiration.

Persiapan

Required material

anodized aluminum
magnet

Machine used

SpeedMarker 700
20 W MOPA laser
F254 lens

You can use any other machine of the SpeedMarker series, Speedy fiber or Speedy flexx.

Important

You might need other parameters when marking glossy aluminum.

Creating a black marking is only possible with the MOPA laser. This is the only laser that colors anodized aluminum black through short pulsing. The conventional fiber lasers in the SpeedMarker Series, Speedy Flexx or Speedy Fiber Laser, can only create white marking.

graphic-files-nametag-MOPA.zip

ZIP

Unduh sekarang

ZIP

Unduh sekarang

Langkah demi Langkah

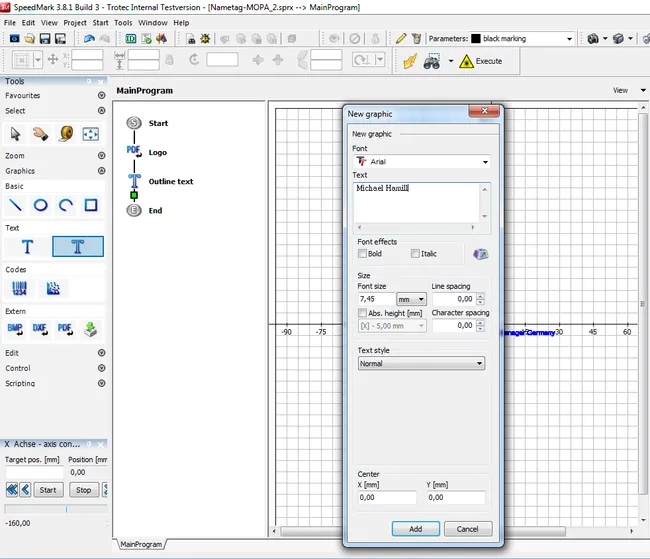

Antarmuka perangkat lunak penandaan laser Trotec SpeedMark dengan jendela input teks terbuka

Langkah 1

Step 1: Design

Import our template or create your own design. Import the PDF with layers into SpeedMark and assign parameters and fillings to the object.

Important: If texts are imported from a PDF, they have to be converted into curves before. Otherwise SpeedMark Software does not recognize them as Text. Alternatively, you can produce the text directly in SpeedMark.

Filling for	Fill style	Line distance [mm]
Logo	cross lines (bidirectional)	0.03
Name	Bidirectional	0.001
Title	Bidirectional	0.001

Langkah 2

Step 2: Laser process

Now enter the parameter settings. They can differ depending on the laser machine used and laser power available.

Laser parameter	Process	Power [%]	Speed [mm/s]
Logo	Marking	50	2000
Name	Marking	50	1500
Title	Marking	50	1500

Laser parameter	Frequency [kHz]	Pulse width [ns]	Passes
Logo	60	100	1
Name	200	8	1
Title	200	100	1

Menerapkan lencana terukir yang dibuat dengan mesin ukiran laser Trotec ke label nama

Langkah 3

Step 3: Post processing

Fix the magnet on the back of the nametag.

Lencana nama logam yang diukir dengan laser yang dibuat dengan teknologi penandaan laser Trotec

Inspiration

Try different colors of anodised aluminium and sizes to add another element to your offer.
