Creative wall decoration

In this DIY tutorial, we will show you how to create stunning wall décor using various Trotec materials.

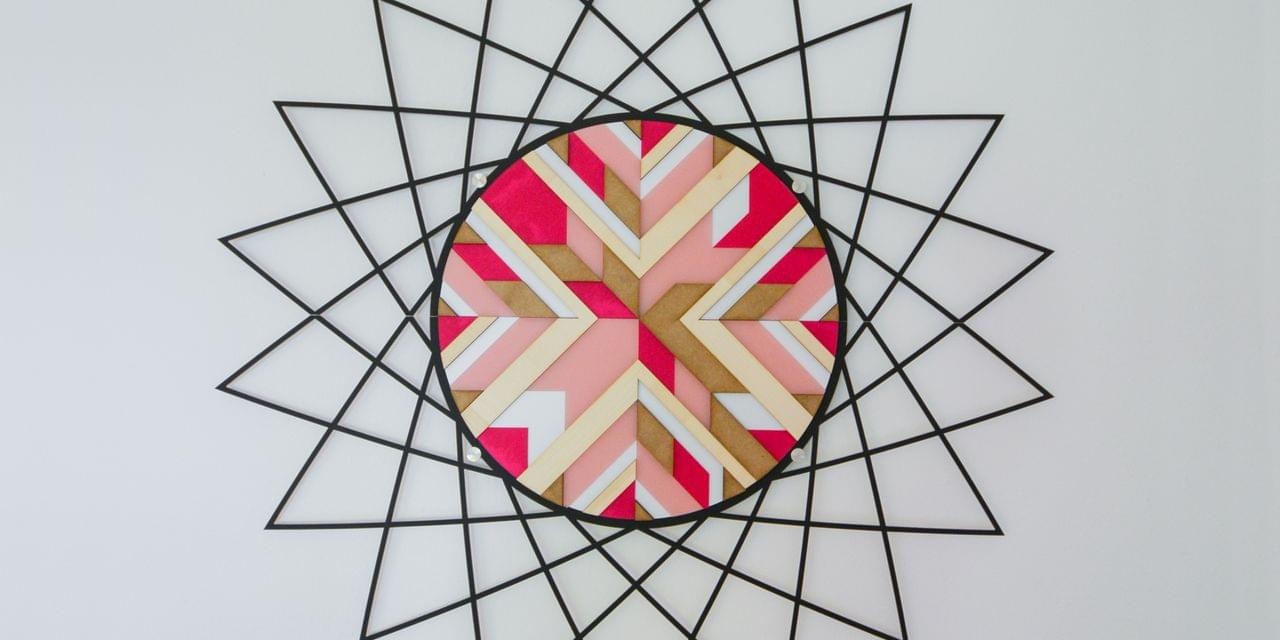

Wall decoration

Preparation

Machine used
  • Speedy 360, 80 watts
  • 2" lens
  • Vacuum table with a honeycomb cutting table and acrylic cutting grid

For this application, you can use any laser machine from the Speedy laser engraver series.

Tip

Trotec offers a wide range of consumable materials that allow you to create highly customized products for your customers, in assorted color combinations.

Wall Decoration

ZIP

Download now

Step by step

trotec laser print settings TroGlass
Step 1

Step 1: Importing your design

Create your own unique design or import our suggested template. Adapt it to your requirements, and then send the job to the laser using the driver settings below.

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Color Optimized geometries
laser cutting acrylics TroGlass
Step 2

Step 2: Laser cutting the TroGlass materials

Situate your first TroGlass workpiece on the acrylic cutting grid of your laser cutter, and cut the individual pieces. Repeat this step for the other materials as well, and please note, that the protective foil backing can be left on the material during processing to reduce the possibility of scratching. In our example, we removed the protective foil to avoid having to peel each individual piece off in small segments. Depending on your specific laser and the available power being used, laser parameters can also vary greatly:

Color Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 100 0.9 1000
Passes Air Assist Z-Offset Advanced
1 On - -

Tip:

We processed this application with an SP500 laser cutter because of its overall large size, which could accommodate our design, as well as for its black back plate. If your laser system does not offer a large working area, consider reducing the complete graphic or only cut a round base plate.

Get more tips and tricks on laser-processing acrylic.

trotec laser print settings TroLaseFoil
Step 3

Step 3: TroLase Foil

The two half circles of TroLase foil are the all-over background on which we place each individual piece. Using the following parameters, send the half circle to the laser:

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Color Optimized geometries
laser cutting trolase foil
Step 4

Step 4: Cutting TroLase Foil

Using the following parameters, place the TroLase Foil (two pieces will be needed) on the acrylic grid and cut the half circle:

Color Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 40 2 1000
Passes Air Assist Z-Offset Advanced
1 On - -
trotec laser print settings Solid Wood
Step 5

Step 5: Design Solid Wood Maple

Next, send the design for the MDF and solid wood maple to the laser with the following parameters:

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Color Optimized geometries
laser cutting solid wood
Step 6

Step 6: Cutting solid wood

Replace the acrylic cutting grid with the honeycomb cutting table and cut the maple wood using the following parameters:

Color Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 100 1.4 1000
Passes Air Assist Z-Offset Advanced
1 On - -

Tip:

We suggest using the small nozzle with a lot of compressed air (if available) for clean cut edges

Laser cut wall decoration
Step 7

Step 7: Cutting MDF

Position the MDF plate into your Trotec laser and cut the single pieces using the following parameters:

Color Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 90 0.4 1000
Passes Air Assist Z-Offset Advanced
1 On - -
assembly arts and crafts wall decoration
Step 8

Step 8: Assembly

The assembly of the decoration is the most time-consuming process of this sample.

First glue the two star like base plates with the circle of TroGlass Satins. Make sure that the two large pieces are well positioned edge to edge. Now turn the decoration and remove the protective foil (if you haven't removed it before cutting). Fix the two half circles of TroLase Foil. Now take the time to apply the pieces of the different materials

Fix it on the white base plate with glue once you have verified the correct positioning. Referencing an image of the finished graphic can be helpful during assembly, and you can locate this image in the accompanying document for download.

Once all pieces have been fixed and assembled, you can hang the wall décor with the use of proper mounting devices.

Wall decoration out of acrylic and wood

Inspiration

This décor can be used as a wall clock as well, simply cut an additional hole in the middle and insert the clockwork from the back

The décor can also be created to fit perfectly into any clubhouse, office, lounge, etc., by simply using other TroGlass colors and wood type combinations. More information on Trotec materials.
