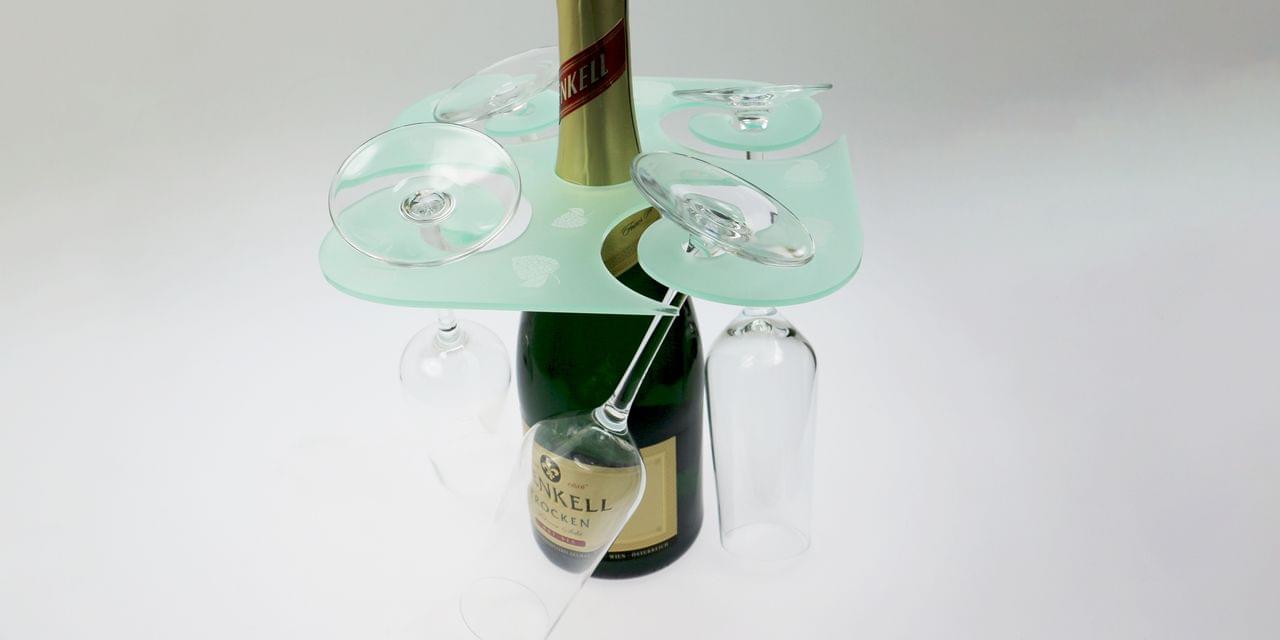

wine glass dispenser laser cut

Acrylic Glass Holder

Download the file and use our instructions to make an acrylic glass holder.

Preparation

Required material
  • 1 sheet of 3 mm acrylic (we used frosted)
  • Material to cover the engraving table (e.g. paper)
  • Paper tape
Machine used
  • Speedy 360 flexx
  • 80 Watt with 2" lens

For this sample you can use any laser machine from the Speedy series.

Important
  • Use the acrylic cutting grid table or the acrylic slat cutting table
  • Remove the protection foil from the side of the acrylic that you want to engrave. Leaving it on the other side protects the acrylic sheet from scratches during handling.
Acrylic Glass Holder

PDF

Download now

Step by step

plexiglass glass holder laser cut
Step 1

Step 1: Import /create design template

Import our design template into your graphic program and adapt it according to your requirements.

Print settings

Process mode Resolution Cut line
Standard 500 dpi none
Halftone Others
Black & White enhanced geometries,
inner geometries first
acylic laser cut glass holder
Step 2

Step 2: Laser process

For best results, we recommend using the acrylic cutting grid table or the acrylic slat cutting table. It avoids back reflections on the material. Position the acrylic sheet into your laser, remove the protection foil and cover the rest of the table to maximize the exhaust power.

More tips on how to laser cut acrylic

Laser Parameters:

Color Process Power (%) Speed (%) ppi/Hz
black engrave CO2 18 20 500
red cut CO2 100 0.9 1000
Passes Air Assist Z-Offset Advanced
1 on - -
1 on - -

INFO:

  • We used the standard laser parameters from Jobcontrol® optimized for speed.
  • The material parameters in JobControl® can be downloaded from www.troteclaser.com
wine glass dispenser laser cut
Step 3

Step 3: Post-processing

Clean the glass holder with some water and dish soap.

Inspirations

  • You can optimize your results even more by using the laser parameters "Quality"
  • You can get particularly good results on dark acrylic with the fiber laser source from a Speedy flexx
  • If you use a 1.5" lens, the engraving becomes very bright. A 3 mm material can also be cut with this lens
  • You can also UV-print the material. Our JobControl® Vision supports you in cutting out the printed sheets with highest precision
