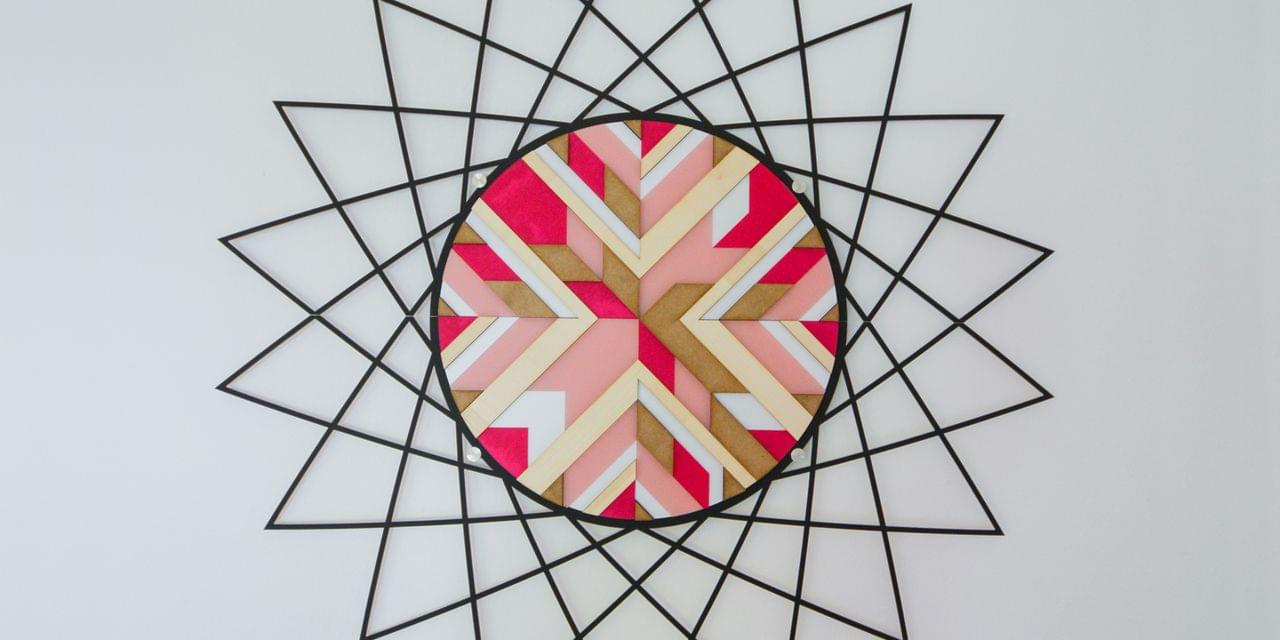

Creative wall decoration

See in this DIY sample how you can make a great wall decoration using different Trotec materials.

Wall decoration
Wall decoration

Preparation

Machine used
  • Speedy 360, 80 watts
  • 2" lens
  • vacuum table with acrylic cutting grid and honeycomb cutting table

Please note that any laser machine from the Speedy laser engraver series can be used for this DIY sample.

Tip

You can offer your customers a multitude of alternative colour combinations thanks to Trotec's wide range of laser engraving materials.

Wall Decoration

ZIP

Download now

Step by step

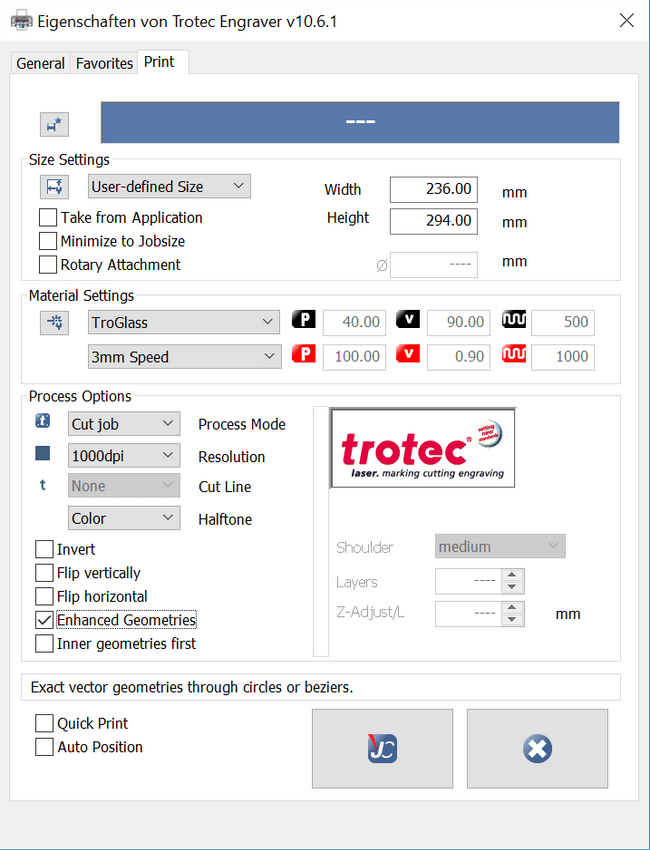

trotec laser print settings TroGlass
Step 1

Step 1: Import design

Feel free to use our template that we have provided or alternatively you can create your own unique design. Once finalised, send the file to the laser using the driver settings below:

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Colour Optimised geometries
laser cutting acrylics TroGlass
Step 2

Step 2: Cutting TroGlass Materials

Begin by positioning the first TroGlass material on the acrylic cutting grid of your Trotec laser machine. Proceed to cutting the individual pieces. Repeat this process for the other materials. We removed the protective foil on the material prior to laser cutting as we did not want to remove it for every single individual piece. You can leave the protective foil on the material if you wish. The parameters used may vary depending on the machine used and the laser power made available:

Colour Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 100 0.9 1000
Passes Air Assist Z-Offset Advanced
1 On - -

Tip:

We used a SP500 laser cutter for cutting the black back plate as we wanted to have an overall large design. The Speedy 360 was too small to perform the job. If you do not have access to such a large laser working area, you can reduce the complete graphic or simply cut a round base plate only.

trotec laser print settings TroLaseFoil
Step 3

Step 3: TroLase Foil

The two half circles of TroLase foil are the all-over background on which we put the individual pieces. Send the half circle to the laser using the following parameters:

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Colour Optimised geometries
laser cutting trolase foil
Step 4

Step 4: Cutting TroLase Foil

Position the TroLase Foil on the acrylic grid. Cut the half circle using the below parameters. Please note you will require 2 pieces.

Colour Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 40 2 1000
Passes Air Assist Z-Offset Advanced
1 On - -

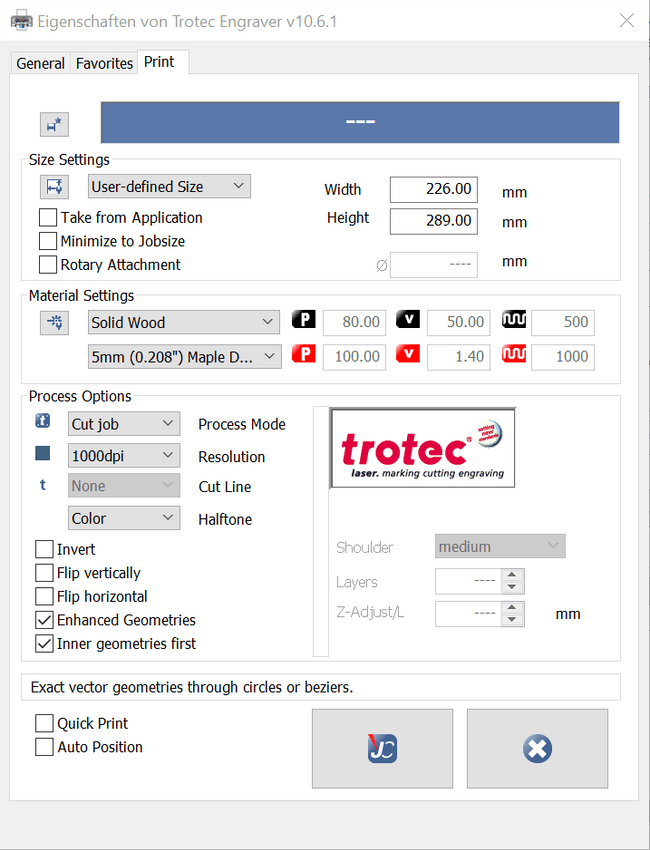

trotec laser print settings Solid Wood
Step 5

Step 5: Design Solid Wood Maple

You can now send the design for MDF and solid wood maple. Use the below parameters:

Process mode Resolution Cut line
Vector Job 1000 dpi None
Halftone Others
Colour Optimised geometries
laser cutting solid wood
Step 6

Step 6: Cutting solid wood

Change the acrylic cutting grid against the honeycomb cutting table and cut the maple wood using the following parameters:

Colour Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 100 1.4 1000
Passes Air Assist Z-Offset Advanced
1 On - -

Tip:

We suggest you use the small nozzle and, if available, a lot of compressed air in order to achieve clean cutting edges.

laser engraving mdf wall decoration
Step 7

Step 7: Cutting MDF

Put the MDF plate into your Trotec laser machine. Using the following parameters, cut the single pieces:

Colour Process Power (%) Speed (%) ppi/Hz
Red Cut CO2 90 0.4 1000
Passes Air Assist Z-Offset Advanced
1 On - -
assembly arts and crafts wall decoration
Step 8

Step 8: Assembly

Now for the most time-consuming step of this DIY tutorial - assembling the decoration.

Firstly, glue the two star-like base plates with the circle of TroGlass Satins. Ensure that the two large pieces are accurately positioned - edge to edge. You then need to turn the decoration and remove the protective foil (if you haven't already removed it prior cutting). Fix the two half circles of TroLase Foil. Now take the time to apply the pieces of different materials.

When you are confident with how they are positioned, glue it on the white base plate. We recommend having an image of the finished product to refer to whilst assembling. You will find this image in the download document provided.

Once all pieces have been fixed, you can then mount the decoration on the wall using the mounting devices.

Inspiration

This decoration piece also makes a perfect wall clock. Simply cut a hole in the middle and insert the clockwork from behind. It's that simple!

This creation can be easily tailored to fit into any office, clubhouse, lounge, etc. Combine other TroGlass colours and wood types to suit your needs.
