Personalisierte Schreibtischunterlage

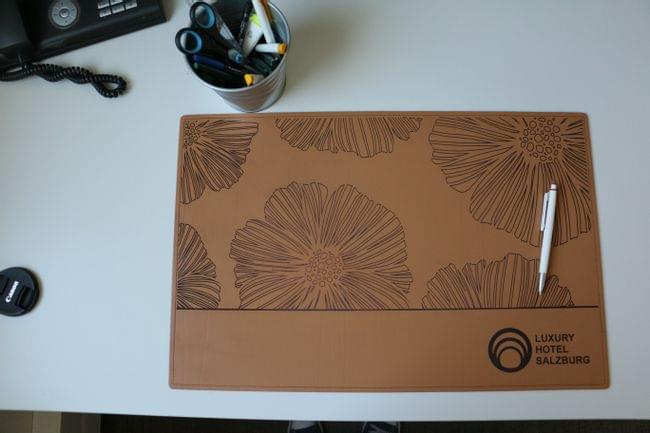

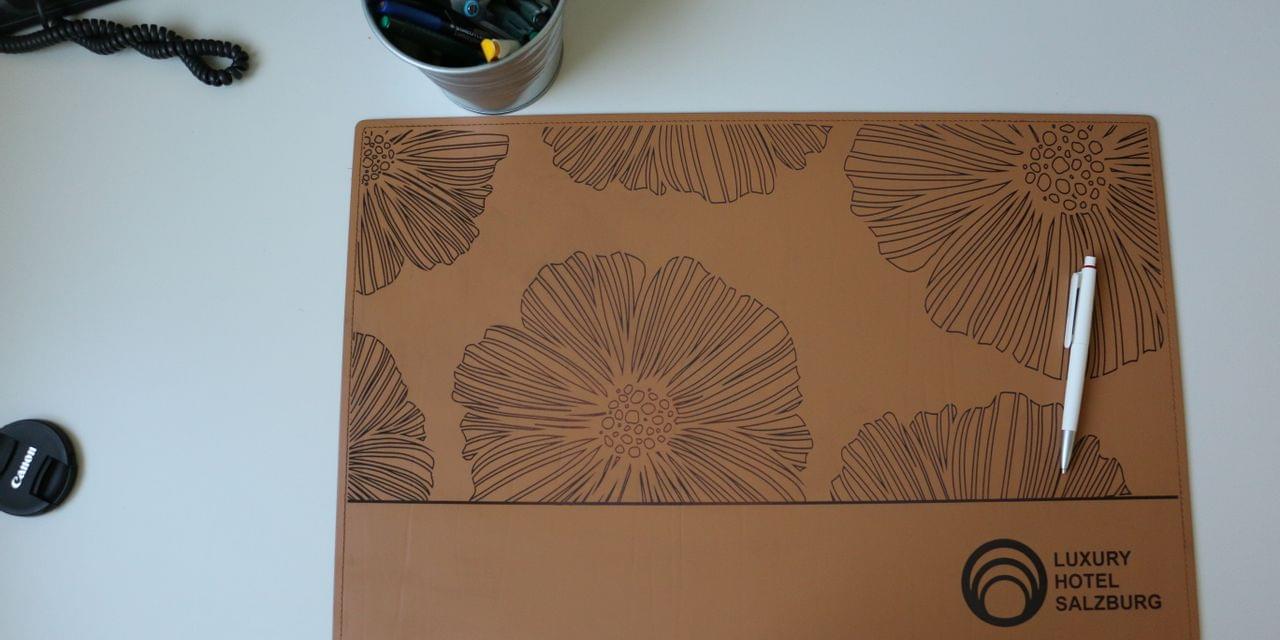

Verschönern Sie eine Schreibtischunterlage aus Recyclingleder.

Vorbereitung

Required material
  • Desk pad made from leather or recycled leather
Machine used
  • Speedy 360
  • 80 Watt with 2" lens
Important
  • Use the engraving table or the vacuum table
trotec-materials-recycling-leather-jobcontrol.zip

ZIP

Jetzt herunterladen

PDF

Jetzt herunterladen

Schritt für Schritt

Step 1

Step 1: Import /create design template

Import our design template into your graphic program and adapt it according to your requirements. Adapt the size of the graphic to the size of your desk pad.

Print settings

Process mode Resolution Cut line
Standard 500 dpi none
Halftone Others
Black & White -
Step 2

Step 2: Laser process

Put the desk pad into your laser and position the top left corner into the 0/0 point of the engraving table. Positon your job into the 0/0 point as well.

Laser Parameters:

Color Process Power (%) Speed (%) ppi/Hz
black engrave CO2 60 100 500
Passes Air Assist Z-Offset Advanced
1 on -2mm High quality

Info:

  • Due to the z-offset of 2 mm, the leaser beam will be defocused and the lines will appear thicker and more intensive than they do in focus.
Step 3

Step 3: Post-processing

Leather is a natural product which tends to burn during engraving or cutting; it also produces a particular smell. Furthermore, the cutting edges can turn dark and stain. Many types of leather can easily be cleaned. However, it is important to test the cleaning method at a discreet place. First off, try to remove the smoke residue with a dry cloth. If that doesn't remove the residue,  try cleaning the leather with a damp cloth or an alcohol-based cleaner.
